Name: CNC Saw 4 Axis OSC-TITAN 2000×4000
SKU: 21923
Price: 28285.00 USD
Availability: InStock

Description

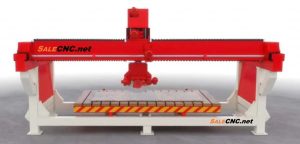

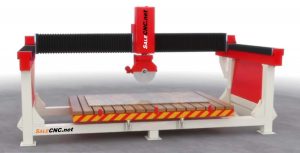

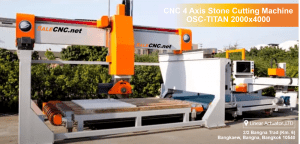

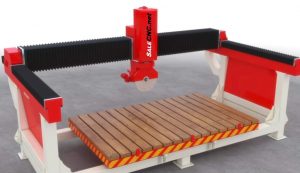

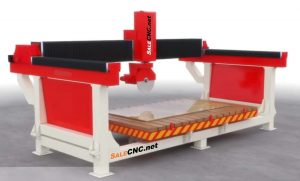

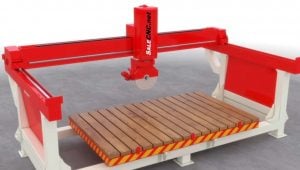

CNC 4 Axis Stone Cutting Machine Model OSC-TITAN 2000×4000

titan 2000x4000

CNC 4 Axis Stone Cutting Machine Model OSC-TITAN 2000×4000 is a new generation of multi-function processor related to design. With the operation of advanced model and control system and synchronous CNC control system Makes the machine able to work easily without having complicated knowledge of CNC
This machine can be used to recognize some advanced functions such as: cutting lines, deburring, drilling, profiling, 3D profiling and edge profiling. Which can be used with small processing plants and shop counters

Characteristic :

Compact size without needing the ground base.
With advanced CNC control system and all pattern operation, the machine can be operated without professional operators.
With powerful functions, the machine can work almost all the jobs of a small factory.
With less electricity and more efficiency, the cost is decreased much.
High quality accessories and electric parts are used to secure long service life and low cost.

cnc saw

OSC-TITAN 3500x2000

saw 2000x4000

Machine Details :

Specification	Details
Programming method	CAD & Manual
Control method	CNC
Main motor power	5kw 380V
R.P.M	3000r/min
Blade size	350mm
X-axis working stroke	2000mm
Y-axis working stroke	4000mm
Z-axis working stroke	260mm
A-axis working stroke	360°free rotation
Cutting thickness	70mm
Working table size	2000x4000mm
Overall size	6500x2750x2100mm
Weight	3000kg
20’container load	1

Note:
1. Delivery time: 30 days.
2. Warranty: 1 year(excluding easily damaged parts)
3. Voltage: According to clients requirements.
4. Trade terms: EXW, FOB, CFR, CIF, DDU, FCA
5. This price includes one set of installation tool and one set of processing tools, not include air pump.
6. If you need tools for profiling and polishing, we will send drawing of edge shapes for your option.

Simple of Work :

OSC-TITAN 3500x2000
