Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil!
Voltage electric current: The AC220v ordinary family uses electricity then (must output through frequency changer, cannot use ordinary family to use electricity directly) the 6.8A highest rotational Speed: 24000 revolution of/minute biggest operating
Frequencies: 400Hz radial direction beat quantity: 0.01mm (in 10 microns namely 1)
Proper alignment: 0.025mm (2.5 microns)

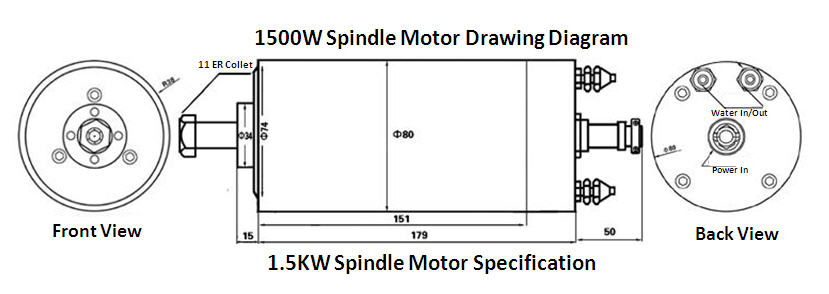

Outlook size: Diameter 80mm, total length 250mm Weight: Net weight 3.81 kilograms, gross weight 4.61 kilograms (meal four net weight 4.71 kilograms, gross weight 5.2 kilograms) in cartridge and standard clamp caliber: The ER11 cartridge, standard layout 6mm, may choose and match 3.175mm, 4mm, 6.35mm (may choose and match or buy in addition) Torque: 0.61Nm (Newton rice) (meal 40.92 Nm (Newton rice) nut model: ER11-A (filament) Velocity modulation way: Through the frequency changer adjustment output voltage and the operating frequency, may realize 0-24000 limitless velocity modulation coolant conditions: Water cycle coolant conditions Power source connection: Selects the GX16 waterproofing aviation connection, in the connection has 1234 labelling, 123 meet the frequency changer power source separately, 4 meet the frequency changer grounding lubrication way: Thermostable grease Fitting and
Packing list: The paper box packing, the interior is the froth packing, the spanner 2, colored instruction booklet 1
Main application: Advertisement engraving machines, numerically-controlled machine tool, small machining center, supercentrifuge and so on
